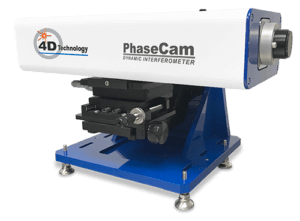

4D TECHNOLOGY PHASECAM 6100
Phasecam 6100은 초소형/경량 레이저 간섭계입니다. 진동 억제 기술 및 4MP의 초고화질 센서를 갖추고 있으며, 전동식 조절이 가능해 긴 거리의 측정이 가능합니다.
또한 고속 광학 페이즈 센서가 장착되어 30마이크로초까지의 파동 측정이 가능하며, 이는 광위상 간섭계보다 5,000배나 빠른 속도입니다. 어떤 상황에서도 진동이나 난기류에 간섭받지 않고 측정할 수 있으며, 특수 환경에서 정밀한 계측이 필요한 항공우주산업이나 국방산업 분야에서 세계적으로 큰 호응을 얻고 있는 제품입니다.
| SPECIFICATIONS | ||
| Description | Vibration insensitive dynamic Twyman-Green interferometer | |
| Acquisition Mode | Single camera, high-speed optical phase sensor | |
| Optical Path | Fiber-coupled head and laser source module; 5 m fiber length | |
| Laser Source | Stabilized HeNe source @ 632.8 nm | |
| Maximum Output | < 5mW | |
| Maximum Cavity Length | > 60 m | |
| Beam Diameter | 9 mm FWHM | |
| Polarization | Circular | |
| Field of View | 9 mm | |
| Focus Range | ±12.5 mm, optical magnification dependent | |
| Pupil Magnification | 1X fixed | |
| Fringe Contrast | User adjustable for reflectivity from 1–100% | |
| Camera | 4 MPx, 12-bit standard | |
| Data Array | User selectable full, half, quarter data arrays | |
| Motorized Controls | Focus, reference beam block, aperture block, contrast adjustment | |

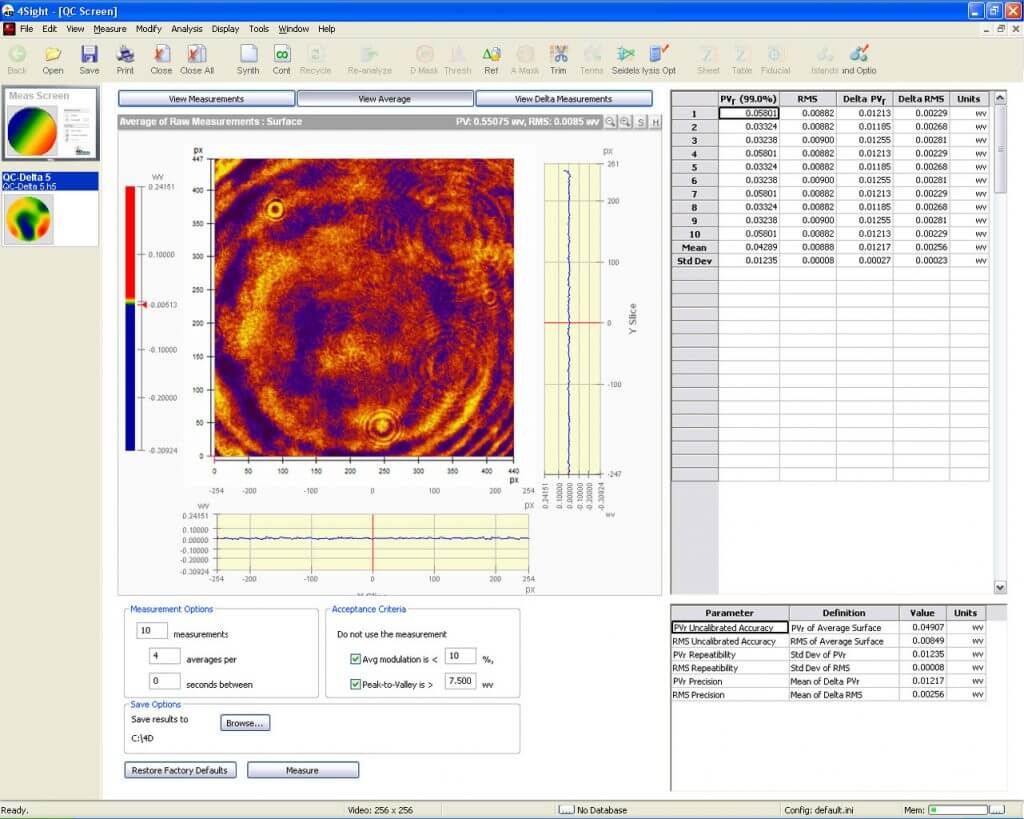

| System Software | 4Sight™ Analysis Software Instantaneous Phase Shifting data acquisition Reference generation, subtraction, data averaging, masking 2D and 3D surface maps Zernike / Seidel / Slope / Geometric / Fourier Analysis Fiducial aided data set mapping HDF4 / HDF5 data format standard, others supported Absolute sphere, prism & corner cube analysis Multiple sub-aperture analysis | |
| Physical Envelope | Measurement Head: < 38.9 x 15.7 x 9.1 cm (15.3 x 6.2 x 3.6 in) Laser Source: 48.3 x 20.3 x 11.9 cm (19 x 8.0 x 4.7 in) | |
| Weight | Measurement Head: < 4.3 kg (9.5 lbs) Laser Source: < 8.2 kg (18.0 lbs) | |
| Power consumption | < 750 Watts with computer | |
| Temperature Range | Operational: 16–27° C (60–80° F), non-condensing Storage: -1–38° C (30–100° F), non-condensing | |
| Acquisition Rate | ≥ 12 frames/sec live video ≥ 12 frames/sec acquisition with post processing | |
