Bruker

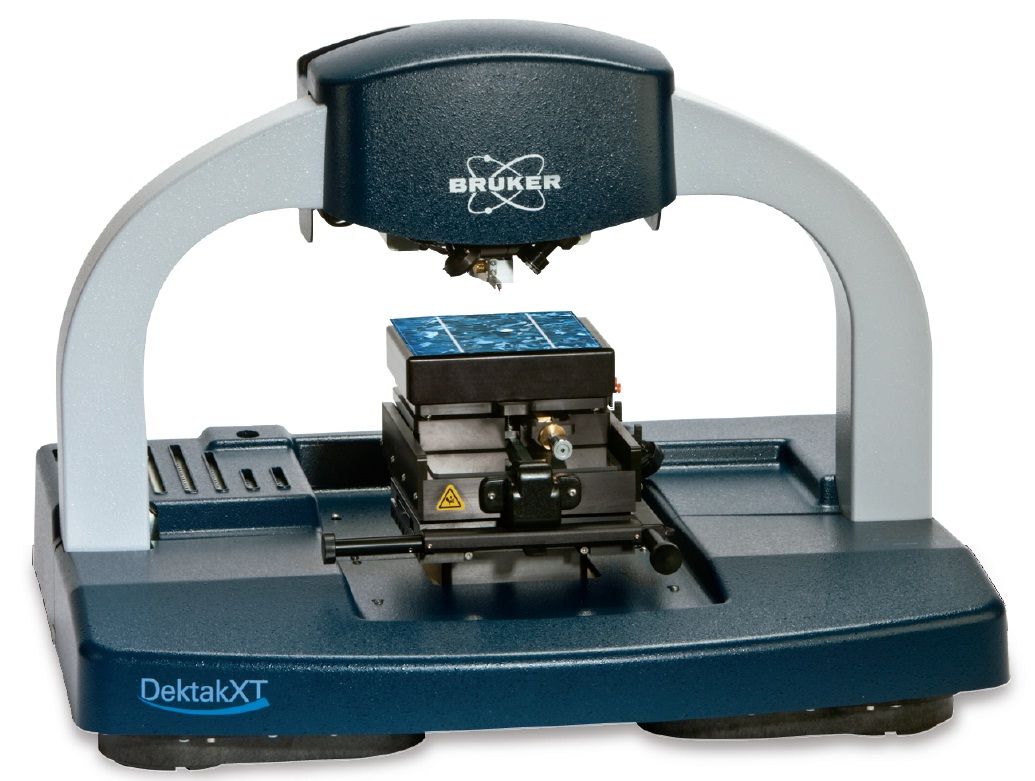

DektakXT SERIES


SPECIFICATIONS COMPARISON




FEATURES
DXT-E
DXT-E(Local)
DXT-S
DXT-A

Scan Length
55mm
55mm
55mm
200mm with Stitching

Stitching
N/A
N/A
N/A
YES

3D Mapping
2D
2D
2D
2D, 3D

Stage Diameter
100mm Square Block
200mm wafer stage
200mm wafer stage
200mm wafer stage

Sample Max Size
4 inch
8 inch
8 inch
8 inch

Stage Rotation
N/A
N/A
Manual Rotation
Motorized Rotation

Stage Movement
4’’ x 4’’ manual
4’’ x 4’’ manual
4’’ x 4’’ manual
6’’ x 6’’ motorized

X-Y Positioning
N/A
N/A
N/A
YES
