Westbond

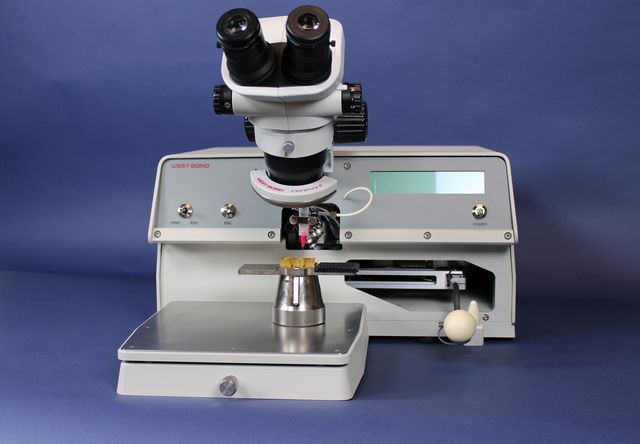

7200CR (Manual Epoxy Die Bonder)


SPECIFICATIONS

TOOL Z RANGE0.625 inch

Z ENCODER RESOLUTION0.001 inch

BOND FORCE RANGEAdjustable, 5 – 75 grams

THROAT DEPTH
5.25 inch

ESD PROTECTION
Protection against Electrostatic Discharge

PICK-UP TOOL LENGTH
0.625 inch

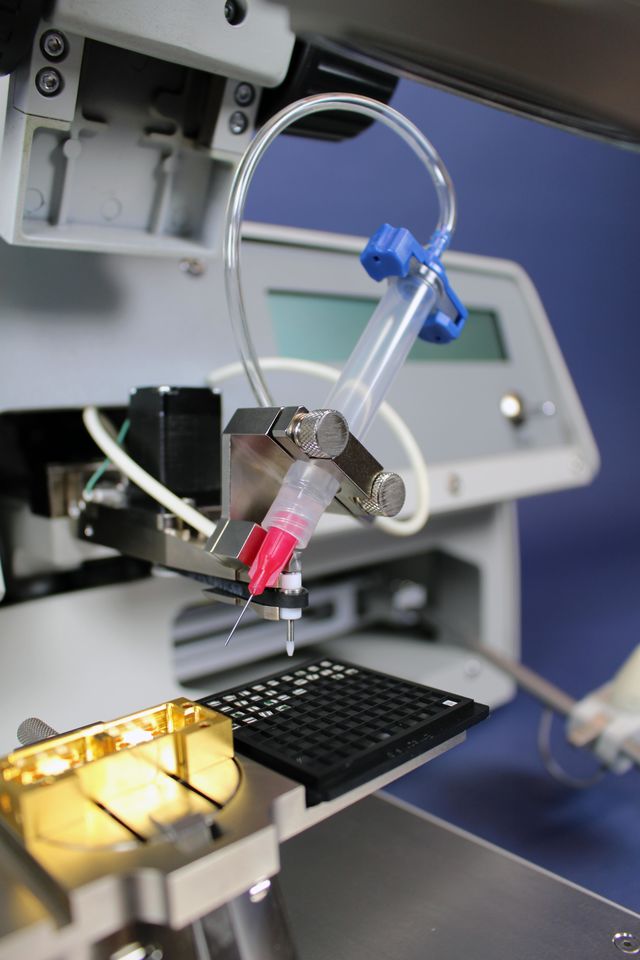

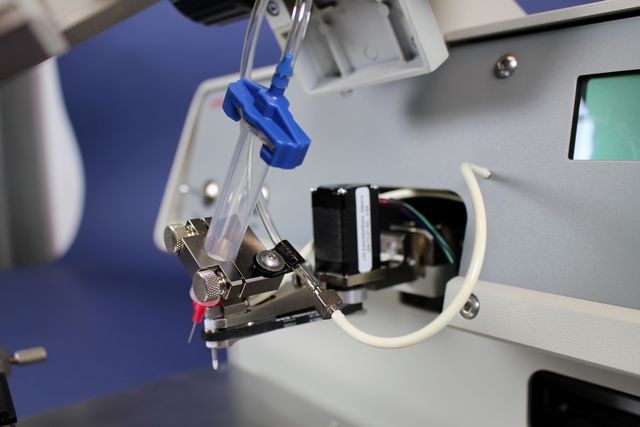

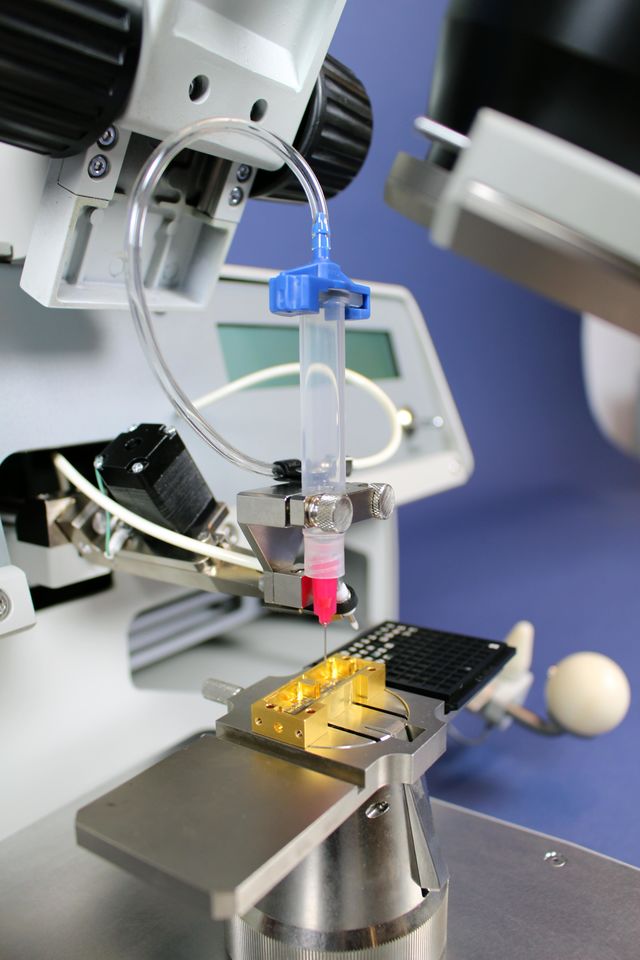

EPOXY DISPENSE NEEDLE LENGTH
0.4 inch

EPOXY DISPENSE NEEDLE BORE
0.006 inch – 0.073 inch

MICROMANIPULATOR
Counterbalanced, single lever X-Y-Z, 8:1 ratio

WORK PLATFORMFixed height. Adjustable height priced separately

MICROSCOPE AND ILLUMINATORSelection available (ESD types available)

WORK HOLDERSSelection available, priced separately
