Westbond

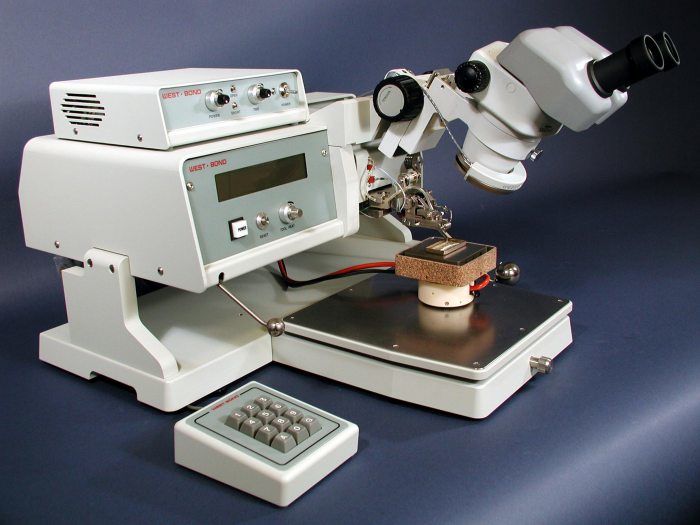

545657E (Semi-Automatic Wire Bonder)

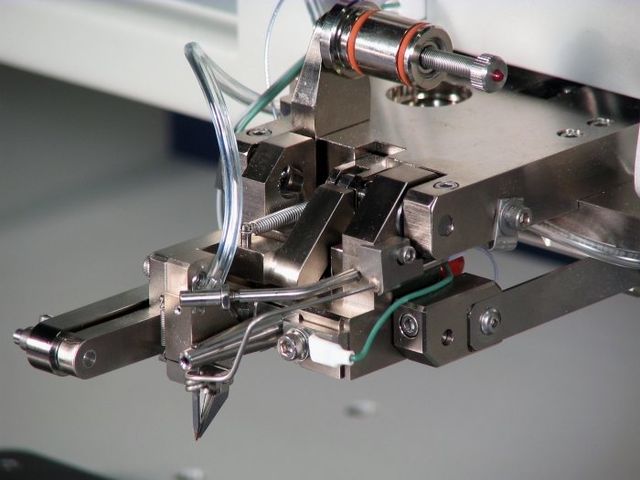

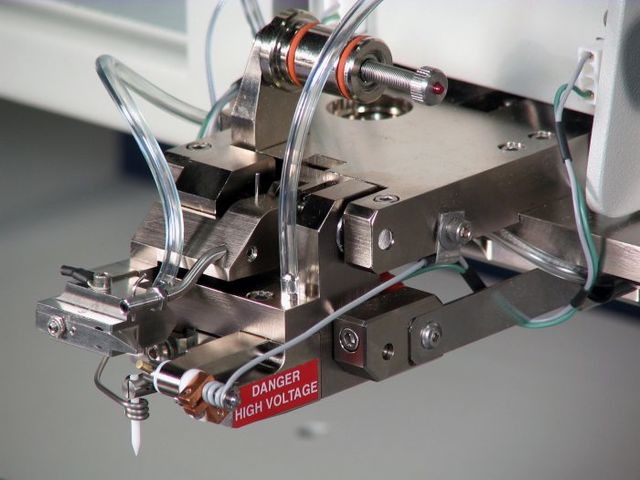

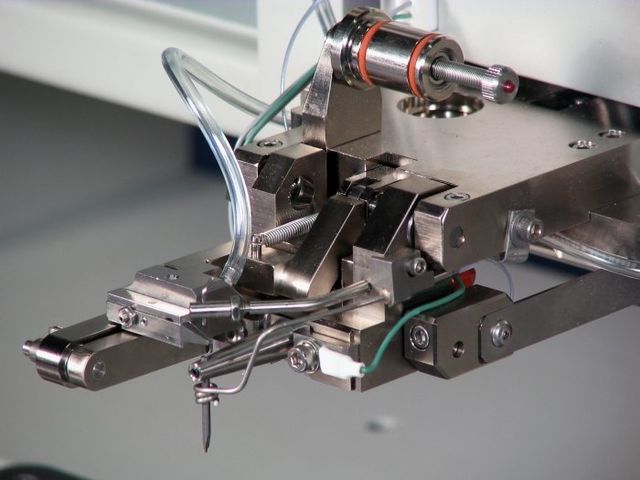

Three-way Convertibility, 45˚wire feed, 90˚ wire and ribbon feed, or Ball Bonder




SPECIFICATIONS

TOOL Z STROKE
0.5 inch

MOTORIZED Z RESOLUTION
0.000208 inch per micro-step

MANUAL Z ENCODER RESOLUTION
0.001 inch

FORCE RANGE
Adjustable, 10-250 grams

BOND FORCE
High / Low Programmable

TRANSDUCER1/2 wave, 63 KHz (nominal)

ULTRASONICSBuilt-in, 8 bit, 5 watts

WIRE RANGE0.7 to 2 mils, ½ x10 mil gold ribbon (vertical feed)

ESD PROTECTIONProtection against Electrostatic Discharge

BALL FAULT DETECTION
Ball bonder

TAIL AND PULL STROKES
Programmable

ANGLED FEED TOOL LENGTH
0.750 inch

VERTICAL FEED TOOL LENGTH
0.750 inch

BALL CAPILLARY LENGTH
0.625 inch

WIRE SPOOL MOUNT0.5 inch with ball bearing roller

MICROMANIPULATOR
Counterbalanced, single lever X-Y-Z

RADIANT TOOL HEAT
Built-in

MICROSCOPE / ILLUMINATOR / WORK HOLDERS
Selection available (ESD types available)
